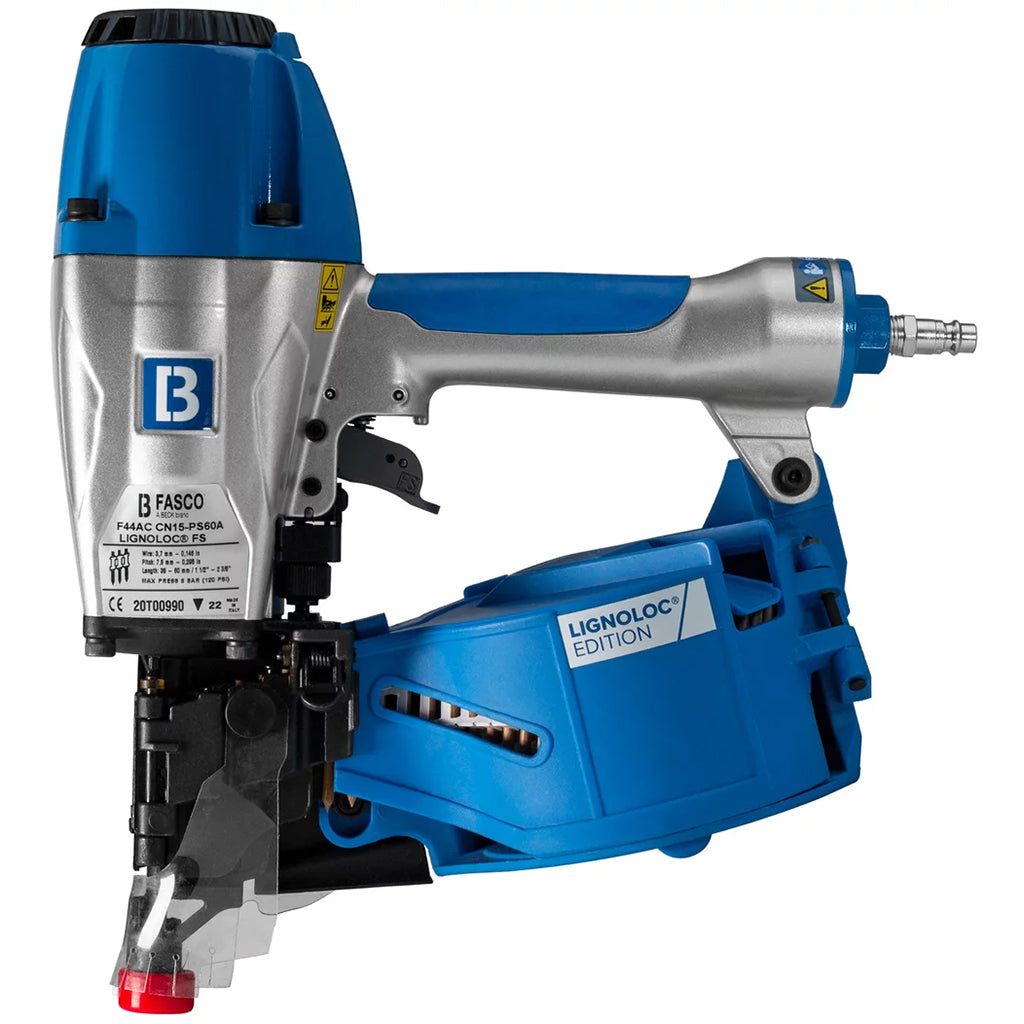

LIGNOLOC® F44 Pneumatic Coil Nailer

Description

The F44 Coil Nailer is specially designed for driving the revolutionary LIGNOLOC® F44 Wooden Nails. Adjust the drive depth without the need of a special tool.

This nailer is an integral part of the LIGNOLOC® system because the high nailing speed allows for the Lignin Welding process to take place. The large amount of heat generated by friction when the nail is driven in, causes the lignin of the wooden nail to weld with the surrounding wood to form a substance-to-substance bond. No pre-drilling or pilot holes necessary.

Specifications

• Fastener Type: LIGNOLOC® F44 Wooden Nails

• Nail Diameter: 3.7 mm (0.145 in)
• Nail Length: 38 - 60 mm (1¹⁄₂ - 2³⁄₈ in)
• Magazine Capacity: 170 nails
• Tool weight: 2.4 Kg (5.29 Lbs)
• Actuation: Full Sequential Actuation, Contact Actuation
• Loading: Coil
• Air pressure: 6 - 8 bar (80 - 120 psi)
• Wood density: 300 - 500 Kg/m³ (~ 18 - 31 Lbs/ft³)

Compatible Nails

• LIGNOLOC® F44 Wooden Nails, Ø 3.7 mm

Applications

Manufactured Housing	Flooring & Subflooring	Furniture & Bedding
