Havelock Wool Insulation for Vans
Description
Natural Wool Insulation for Vans are thinner batts designed to fit in all the nooks, crannies, cracks, holes, and cavities in your van or trailer. Wool insulation batting from Havelock Wool is a chemical-free, passive filtration insulating material that manages moisture and reduces sound.
Ordering details

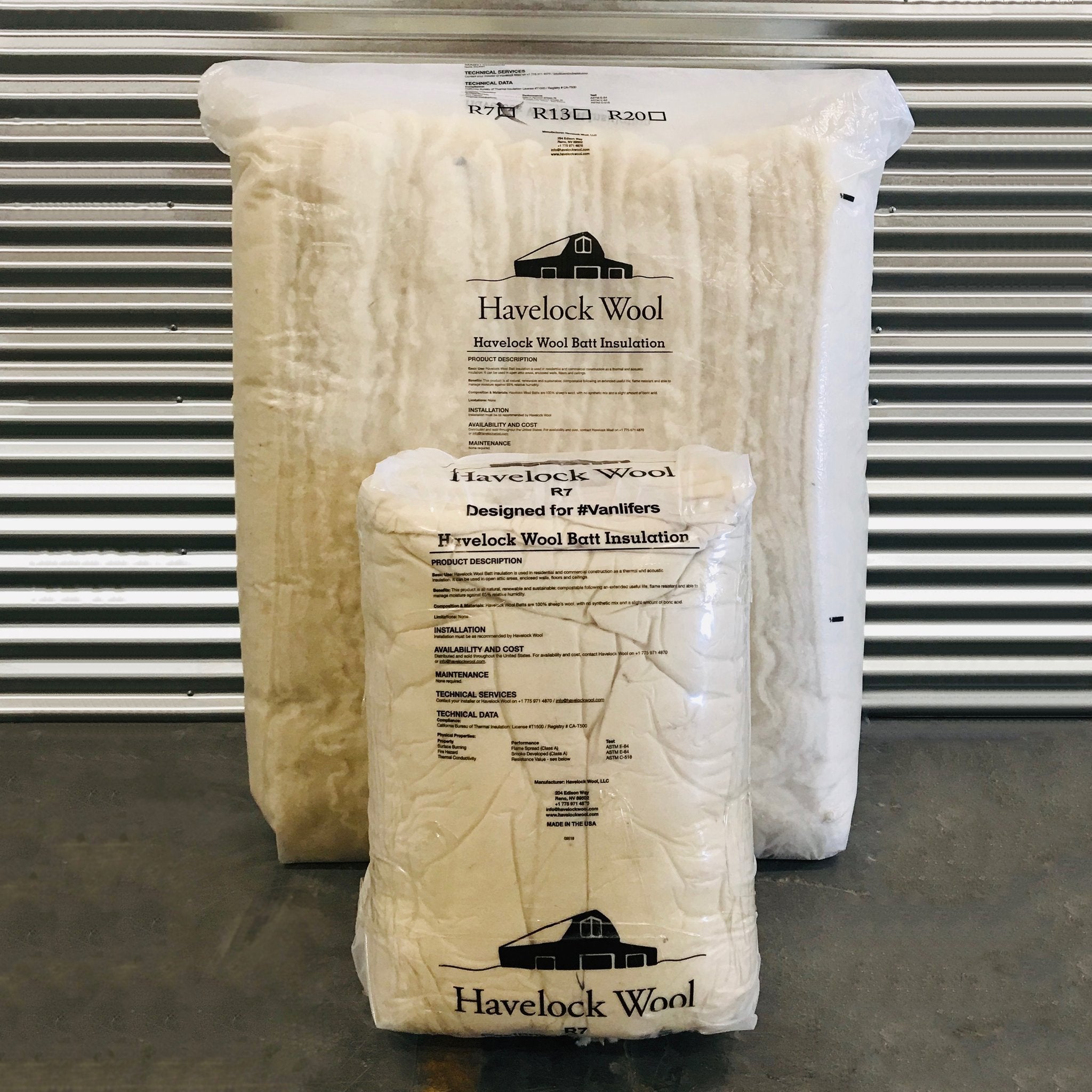

Havelock Wool's #Vanlife Insulation is compressed into bags and then boxed for easy shipping. Each bag contains 20 batts of insulation that are 2 inches thick and will cover about 100 SQFT of area at 2 inches thick. Batts are 48 inches long.
R-value | Thickness | Width for 16" O/C | SQFT / bag |
R-7 | 2 in | 15.5 in | 100 |
*Batts for installation in studs 24" O/C are available by special order. Please inquire.
Estimating quantity
The chart below describes approximate amounts of wool needed to thoroughly insulate walls, ceilings, doors, cab, cracks, holes, channels and all those hard to reach spots in some common van models. Numbers are approximate and can vary based on your specific van build-out. Note, they do not include floor measurements. Please measure your specific van model for square footage and average cavity depth to be certain.
Van Type | Coverage (SQFT) | # of Bags |
Sprinter 144 | 325 | 3-4 |
Sprinter 170 | 375 | 4 |
Sprinter 170 Extended | 425 | 4-5 |
Transit 148 | 325 | 3-4 |
Promaster 159 | 325 | 3-4 |
Mercedes Metris | 250 | 3 |
Chevy Express | 250 | 3 |
Nissan NV | 350 | 4 |
Shipping
- Small orders ship in individual boxes via courier.
- Pallet orders ship LTL on a freight truck. Freight shipments are typically delivered to the curb of the street or driveway, and they include lift-gate service. The freight company will contact you to make an appointment for final delivery.
Benefits of wool
Sheep's wool insulation batts from Havelock Wool are made with 100% wool, no synthetic mix, and are bonded with a needle punch, not chemicals. At the end of its useful life, our wool is 100% compostable.
Filters air and improves indoor air quality
Harmful chemicals are in your walls. The amino acids in wool irreversibly bond with formaldehyde, NOx and SO2 on a molecular level. For example, tests carried out by the Central Testing Facility in Tokyo, Japan found that when formaldehyde was released into a chamber, wool was able to absorb 96% of the formaldehyde within several hours. This capability is unique to natural fibres.
Moisture and climate control
Moisture and mould happens in your walls. Wool can absorb moisture against 65% relative humidity.
Suppresses mold and mildew
Natural keratin prevents against the spread of mould and mildew.
Absorbs sound
Wool exceeds other forms of insulation as an acoustic buffer and is commonly used to naturally enhance the acoustic properties of a building.
Thermal conductivity
Wool batts are industry standard at R-3.6 per inch; loose-fill outperforms at R-4.3 per inch.
Resists fire
Wool will not support a flame below 1100ºF (593ºC). Havelock wool conforms to Class A of the ASTM E84 test.
All natural
Wool insulation is entirely renewable, biodegradable, and sustainable. It takes approximately 10% of the embodied energy it takes to manufacture fibreglass insulation.
Long lasting
Inherent characteristics allow stated R-values to exceed other forms of insulation.
No off-gassing
Natural characteristics make our insulation devoid of harmful chemicals.
Installs easily
Blow-in and batts are installed like other mediums but with no special protection required.
Documents
Havelock Wool Data Sheet
How To Insulate a Van Floor with Havelock Wool
