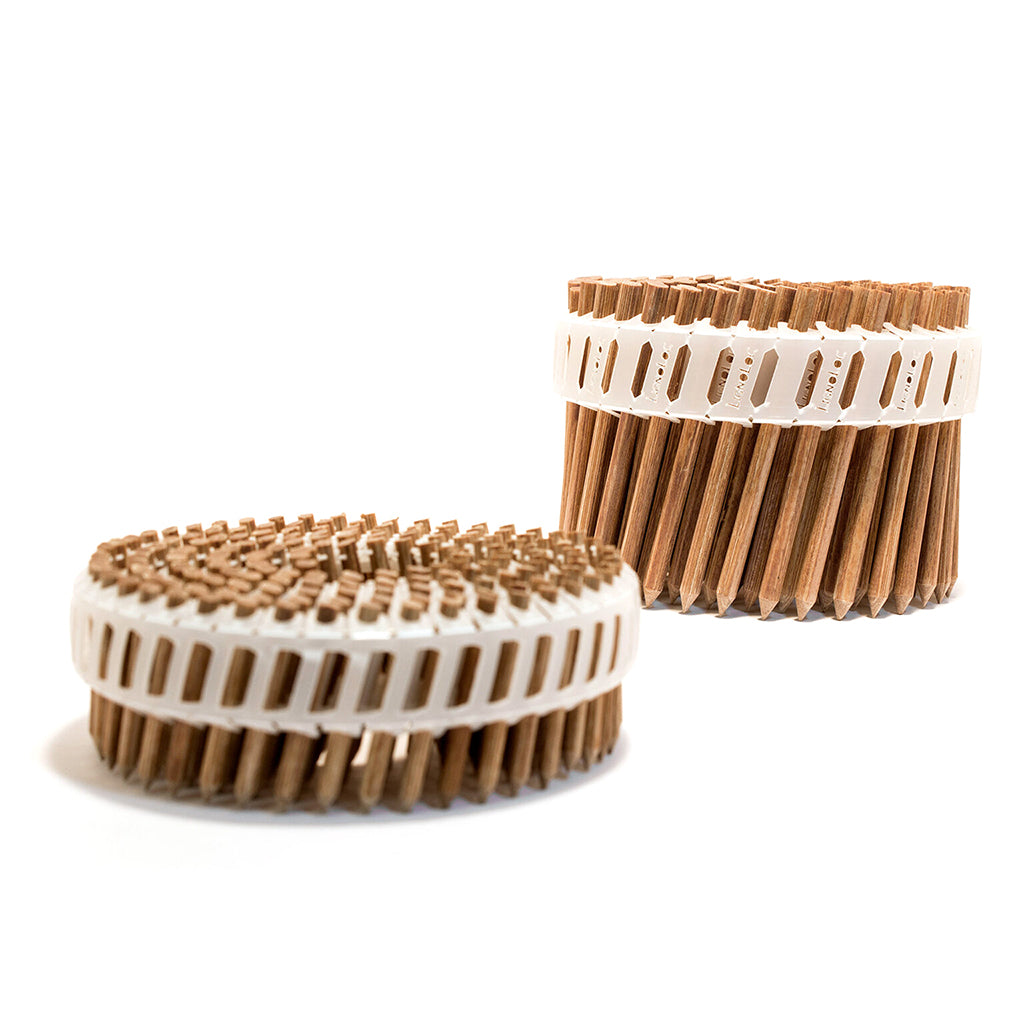

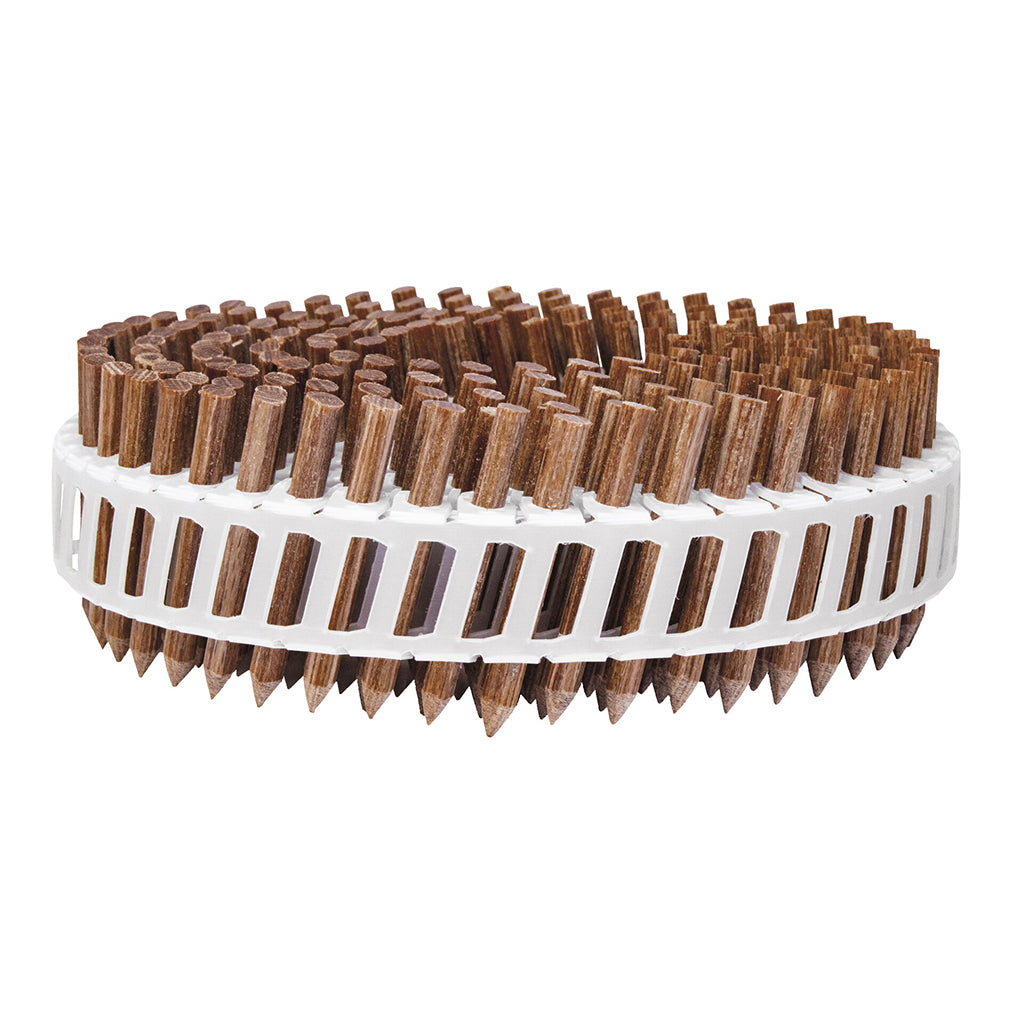

LIGNOLOC® F60 Wooden Nails, Ø 4.7 mm

Sale price$1,115.40

Length: 75 mm (3 in)
Description

LIGNOLOC® F60 Wooden Nails have a thicker diameter and are best used for heavier duty fastening. LIGNOLOC® Wooden Nails are totally natural, long-lasting, strong, and secure, and they are not susceptible to corrosion.

Review the technical data to ensure you matching the right LIGNOLOC® Wooden Nail to the right application.

Try the free Beck Static Tool  to help you calculate the required number of LIGNOLOC® nails for your application.

LIGNOLOC Wooden Nails

Combining performance and sustainability, LIGNOLOC® is the world's first shootable wooden nail. This collated wooden nail is made of German beech wood, a totally renewable raw material.

Perfect for all timber construction projects, indoors and outdoors, from industrial manufacturing to historic and ecological timber construction, that can now be metal-free and also highly efficient.

Due to their mechanical properties, the nails can be shot into wood and wood-based materials without pre-drilling, using the specially developed LIGNOLOC® Pneumatic Coil Nailer, and bond to them permanently.

Thanks to a process called lignin welding, LIGNOLOC® Wooden Nails have high holding power and guarantee a strong, non-detachable connection. The special design of the LIGNOLOC® nail tip and the high amount of heat generated by friction when the nail is driven in, cause the lignin of the wooden nail to weld with the lignin of the surrounding wood, forming a pure, unbreakable substance-to-substance bond.

Dimensions and Quantity
Diameter
mm (in)
Length
mm (in)
Box Quantity
4.7 (0.185) 65 mm 3000
4.7 (0.185) 75 mm 2400
4.7 (0.185) 90 mm 2400
Specifications
  • Material: Compressed beech wood
  • Coil Capacity: 100 nails
  • Flexural Strength: 2250 Nmm
  • Collation Type: 15º plastic sheet coil
Compatible Nailer
Applications
Drywall Interior Construction Framing
Furniture & Bedding Manufactured Housing Millwork
Structural Timber Construction
Documents

Information Sheet, LIGNOLOC® F60 Wooden Nail System
Fiche informatique, Système de clous en bois LIGNOLOC® F60

Technical Data Sheet, LIGNOLOC® F60 Wooden Nails, Ø 4.7 mm

German National Technical Approval, LIGNOLOC® Wooden Nails
Eurpoean Technical Assessment (ETA), LIGNOLOC® Wooden Nails
Agrément Technique Européen (ATE), Clous bois LIGNOLOC®
See our Documents & Knowledge page for more detail.
