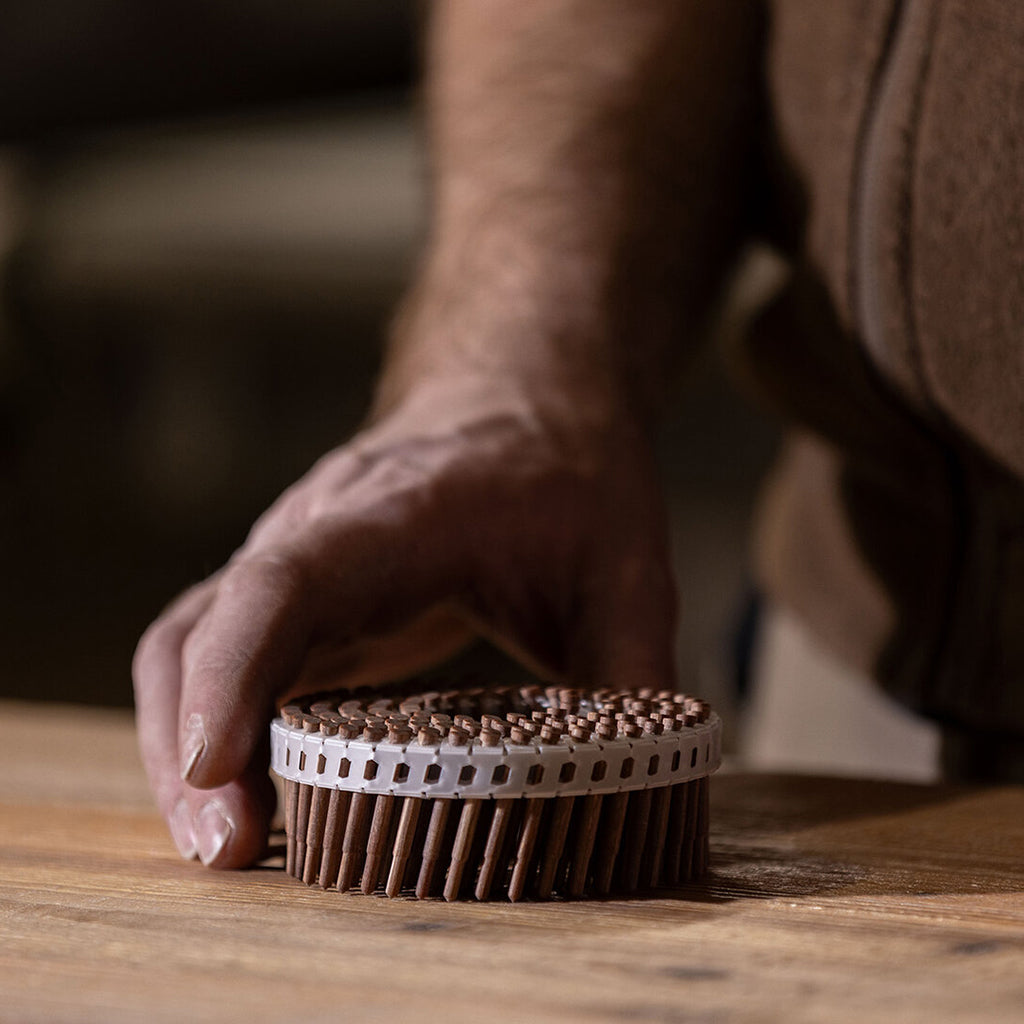

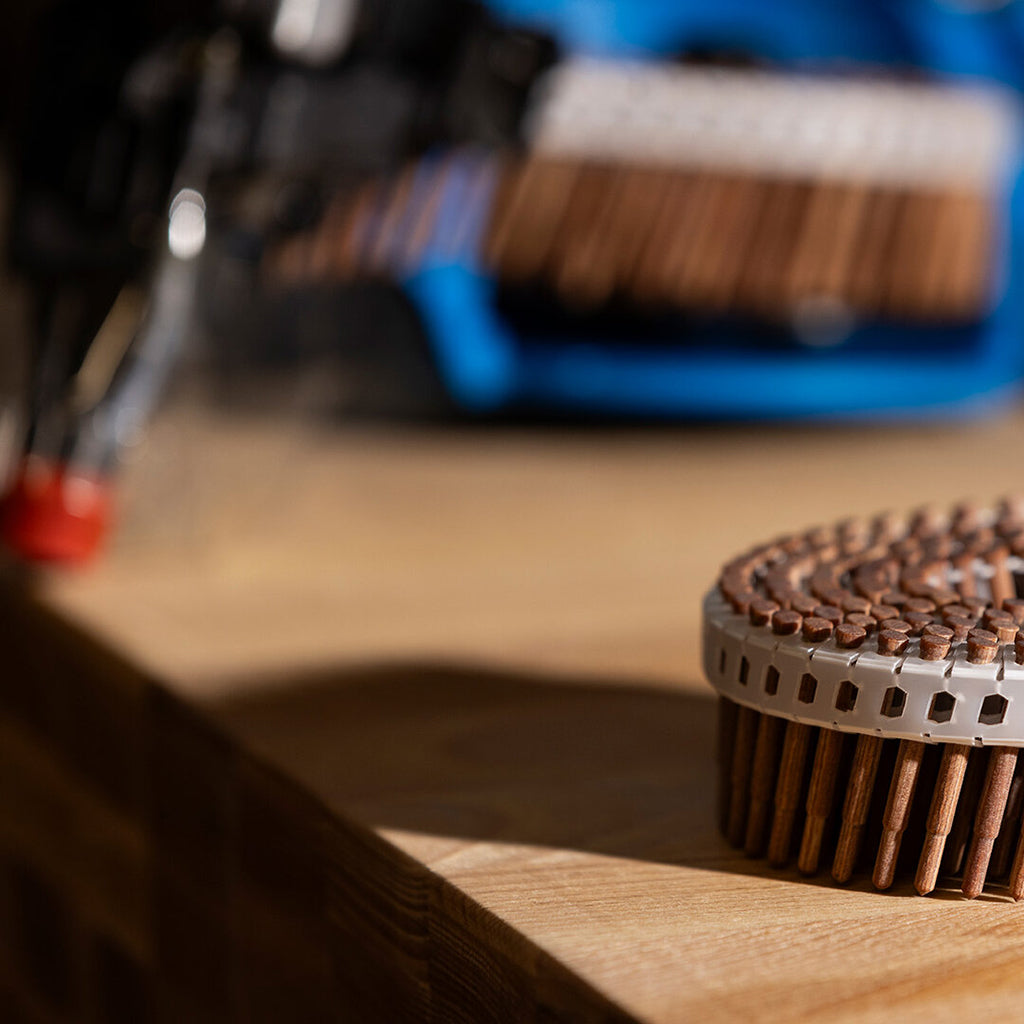

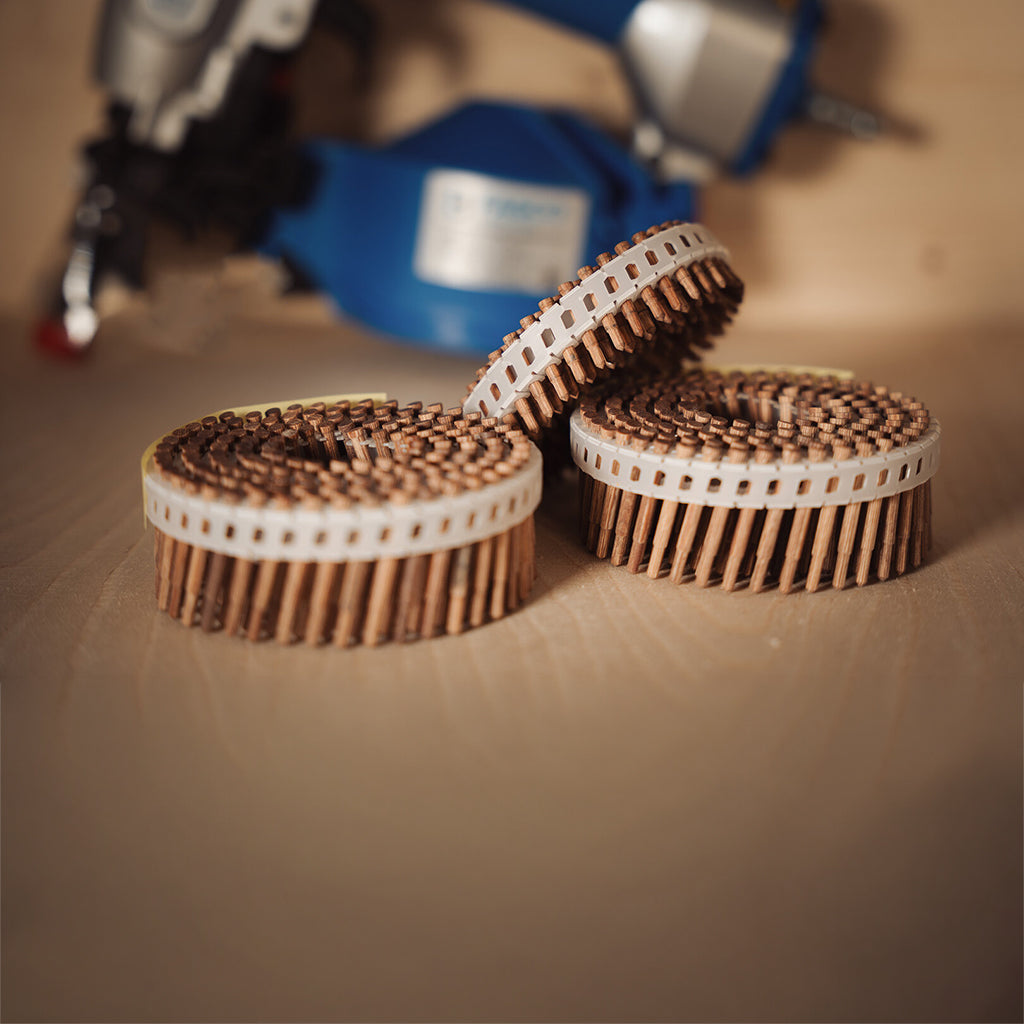

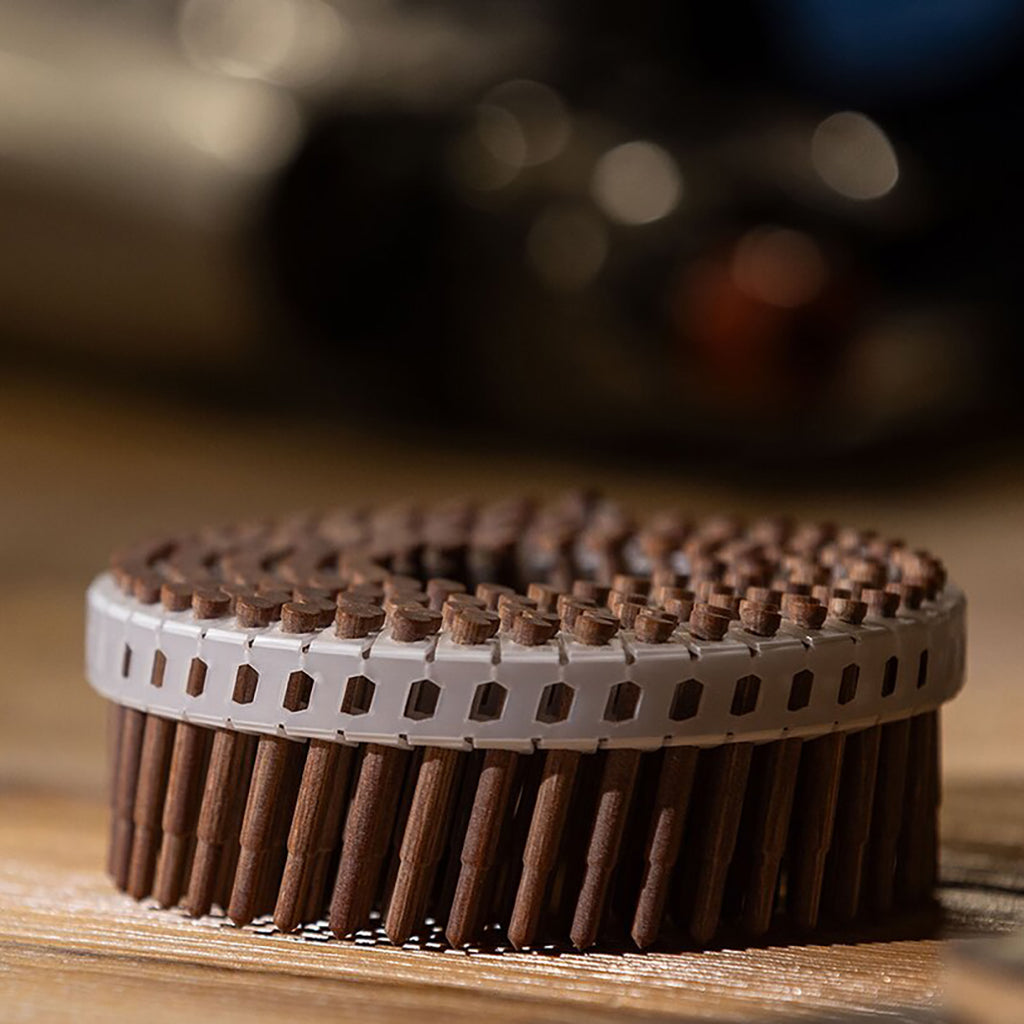

LIGNOLOC F33 Stepped Shaft Wooden Nails, Ø 3.5 mm
Purchasing
LIGNOLOC wooden nails are sold the case. See the table below for dimensions and quantities.
Description
LIGNOLOC F33 Wooden Nails have the smallest diameter and shortest shaft and are ideal for precise and fine work. Particularly suitable for kitchen and furniture construction, as well as for demanding interior finishing projects. The stepped shaft design minimizes the risk of splitting wood. Perfect for carpenters and joiners. LIGNOLOC Wooden Nails are totally natural, long-lasting, strong, and secure, and they are not susceptible to corrosion.
Review the technical data to ensure you matching the right LIGNOLOC Wooden Nail to the right application.
Try the free Beck Static Tool to help you calculate the required number of LIGNOLOC nails for your application.
LIGNOLOC Wooden Nails
Combining performance and sustainability, LIGNOLOC is the world's first shootable wooden nail. This collated wooden nail is made of German beech wood, a totally renewable raw material.
Perfect for all timber construction projects, indoors and outdoors, from industrial manufacturing to historic and ecological timber construction, that can now be metal-free and also highly efficient.
Due to their mechanical properties, the nails can be shot into wood and wood-based materials without pre-drilling, using the specially developed LIGNOLOC Pneumatic Coil Nailer, and bond to them permanently.
Thanks to a process called lignin welding, LIGNOLOC Wooden Nails have high holding power and guarantee a strong, non-detachable connection. The special design of the LIGNOLOC nail tip and the high amount of heat generated by friction when the nail is driven in, cause the lignin of the wooden nail to weld with the lignin of the surrounding wood, forming a pure, unbreakable substance-to-substance bond.
Dimensions and Quantity
| Diameter mm (in) |
Length mm (in) |
Box Quantity |
| 3.5 (0.138) | 38 (11⁄2) | 600 |
Specifications
- Material: Compressed beech wood
- Coil Capacity: 150 nails
- Collation Type: 15º plastic sheet coil
Compatible Nailer
Applications
| Millwork | Furniture & Bedding | Pallets & Crates | Interior Construction |
Documents
Information Sheet, LIGNOLOC F33 Wooden Nail System
Technical Data Sheet, LIGNOLOC F33 Stepped Shaft Wooden Nails, Ø 3.5 mm
German National Technical Approval, LIGNOLOC Wooden Nails
Eurpoean Technical Assessment (ETA), LIGNOLOC Wooden Nails
Agrément Technique Européen (ATE), Clous bois LIGNOLOC
See our References page for more detail.
